Product Overview

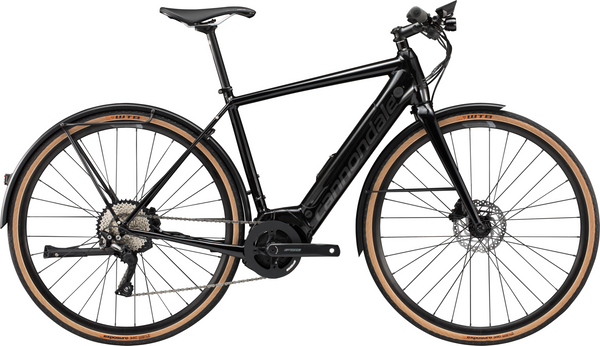

Equipped for fast commuting and sportive adventure riding, this fully-loaded version of the new Quick NEO blends high-speed fun with workhorse versatility. It all starts with convenience: full-coverage fenders keep you dry and clean when riding in the rain, a rear rack carries your daily essentials, and front and rear lights brighten your way so you can take to the streets in safety and comfort. A Shimano Deore 10-speed drivetrain is complemented by Bosch's Active line Plus 250W drive system that allows you to select the level of assistance to suit your needs for the ride, and dependable hydraulic disc brakes provide confident stopping power, even in wet weather. A Bosch Kiox handlebar-mounted display lets you see vital ride and battery metrics, and a useful kickstand lets you load and unload the bike with ease.
Specs
| Drive System | Bosch Active Line Plus 250W |
|---|---|
| Display | Bosch Kiox |
| Battery Type/Weight | Bosch PowerTube 500Wh |
| Charger Type | Bosch 4A |
| Frame | ALL-NEW Quick NEO, SmartForm C1 Alloy, SAVE, Ai, flat mount brake, 142x12 thru-axle |
| Fork | ALL-NEW Quick NEO Disc, BallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount, 12x100 thru axle |
| Headset | Integrated, 1-1/8 to 1.5", sealed angular contact bearings |
| Axles | Front: 12x100mm Rear: 12x142mm |
| Rims/Wheels | Cannondale C2, 32h, Double wall |
| Hubs | Formula DC-512 front, DC-142 rear |
| Spokes | DT Swiss Champion |
| Tires | WTB Exposure TCS, 700 x 34c, Distance + compound, tubeless ready |
| Crankset | FSA E-bike, 170mm, Gen3, 38t |
| Chain | Shimano HG54, 10-speed |
| Rear Derailleur | Shimano Deore GS |
| Cassette/Rear Cogs | Shimano HG500, 11-42, 10-speed |
| Shifters | Shimano Deore, 10-speed |
| Handlebars | Cannondale C3 Flat, 6061 double-butted Alloy, 8° sweep, 720mm |
| Tape/Grips | Cannondale Ergo Fitness Dual Density, Lock-on |
| Stem | Cannondale C3, 6061 Alloy, 31.8, 7° |
| Brake Levers | Shimano MT200 hydro disc |
| Brakes | Shimano MT200 hydro disc, 160/160mm RT26 rotors |
| Pedals | Cannondale Urban Pedal |
| Saddle | Fabric Scoop Radius Elite, cro-mo rails |
| Seatpost | Cannondale C3, 6061 Alloy, 25.4X350mm |
| Accessories & Extras | Lights - Supernova Mini 2 front / E3 Tail Light 2 rear, Tubus Wingee Fenders & Rear Rack |
* Subject to change without notice.
