Product Overview

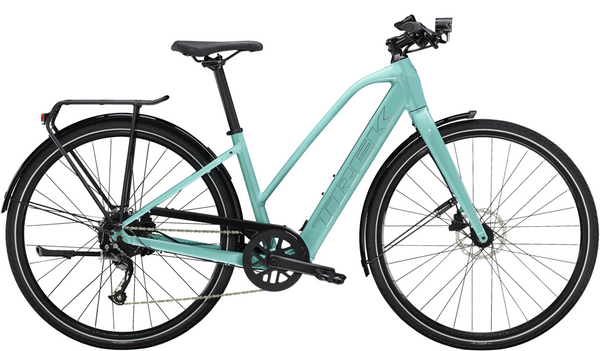

FX+ 2 Stagger is a lightweight city electric bike that's designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and fenders add even more versatility to this bike.
You want a lightweight, simple to use city e-bike that brings a capable boost to daily errands, commutes, and joyrides around your city.
A lightweight aluminum frame with a stagger design that makes it easier to hop on and off, Trek's proprietary pedal assist system with a hub motor (250W, 40Nm) that assists up to 25 km/h and a 250Wh battery for a range of up to 55 kilometers per charge. Plus, fast 700c wheels, fast-rolling yet stable 40c tires with reflective sidewalls, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, a MIK-compatible rear rack, fenders, and a kickstand.
All the versatility and confidence of FX, with an electric boost that helps you do more and go farther! FX+ also comes with ride-ready accessories like a rack and fenders that make it easier to commute and run errands.
- This is our lightest city e-bike, making it easier to maneuver while parking and less of a pain to carry up stairs
- The pedal assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
- It really is ready to roll, with included accessories like fenders, lights, and a MIK-compatible rear rack
- Double your range with a 250Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
Specs
Frame | Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
---|---|
Fork | FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
Rims | Bontrager Connection, alloy, double-wall, 32-hole, schrader valve |
Hubs | Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR Rear: G2 hub drive |
Spokes | 14g stainless steel |
Tires | Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c |
Bottom Bracket | Torque sensor, T47 threaded, 122.5mm spindle |
Crankset | ProWheel Pro alloy, 42T narrow-wide steel ring |
Shifters | Shimano Altus M2010, 9 speed |
Rear Derailleur | Shimano Altus M2000, long cage |
Cassette/Freewheel | Shimano HG200, 11-36, 9 speed |
Chain | KMC X9 |
Brakes | Shimano hydraulic disc, MT200 lever, UR300 caliper |
Rotors | Shimano RT26, 6-bolt,160mm |
Handlebars | Bontrager alloy, 31.8mm, 15mm rise |
Tape/Grips | Bontrager XR Endurance Comp, lock-on |
Stem | Bontrager alloy, 31.8mm, Blendr compatible, 7 degree |
Seatpost | Bontrager alloy, 31.6mm, 12mm offset |
Saddle | Bontrager Sport Women's |
Pedals | Bontrager City pedals |
Accessories & Extras | Fender: SKS plastic Cargo Rack: MIK Compatible alloy rear rack Light: Herrmans MR4-E Frontlight, 40LUX, 120 lumen LED. 6-12 VDC. Without Bracket. With 50mm Power-in cable. Without Power-out cable. With Reflector (white) // Spanninga Solo Kickstand: Rear mount, alloy |
Battery | 250Wh |
Controller/Display | Bluetooth display |
Charger | 2A, 42V output, 100V-240V AC input |
* Subject to change without notice.
